DIY pellet mills have greatly changed people’s life since it was born. Recently, there are many different kinds of DIY pellet mills that facilitate daily life— it is for processing biomass pellets.

Video of How DIY Pellet Mill Make Pellets Easily According to customers’ need, GEMCO also develops a series of DIY pellet mills such as electric pellet machine that meets customers who has convenient power. Each of them is small, compact, efficient, and productive with low cost. However, the work principle has both roller-rotating type and die-rotating type. You can choose the one suitable for you.

• Electric power has generally been recognized as a clean form of energy usage way in many countries，GEMCO offer you a series of electric pellet mill to be chosen for you.

Technical Parameters of Electric Type DIY Pellet  Mill

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP120B	2.2/3KW	40-80 kg/h	80/100 kg	750*320*680mm
		90-180 lbs/h	175/220 lbs	30*13*27inch
ZLSP150B	4KW	50-90 kg/h	95/110 kg	800*450*700mm
		110-200lbs/h	210/250 lbs	31*18*28inch
ZLSP200B	7.5KW	80-120 kg/h	200/230 kg	1050*480*930mm
		180-265lbs/h	440/510 lbs	41*19*37inch
ZLSP230B	11KW	120-200kg/h	290/320 kg	1180*540*1000mm
		245-440lbs/h	640/105 lbs	46*21*39inch
ZLSP260B	15KW	160-250kg/h	320/360 kg	1240*540*950mm
		350-550lbs/h	705/800 lbs	49*21*37inch
ZLSP300B	22KW	250-400kg/h	350/380 kg	1300*560*1100mm
		550-880lbs/h	770/840 lbs	51*20*43inch

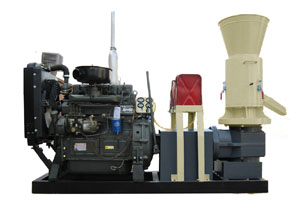

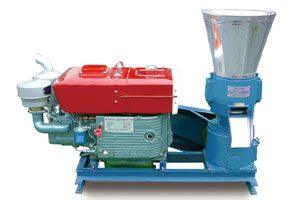

• When customers in local have little power, you can choose diesel pellet machine.

Die-rotating	Roller-rotating

Technical Parameters of Diesel Pellet Machine

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP200A	15 HP	80-120kg/h	320/350kg	1460*950*1100mm
		170-270lbs/h	705/772lbs	58*37*55inch
ZLSP300A	36 HP	250-350kg/h	850/890kg	1100*700*2480mm
		550-770lbs/h	1874/1962lbs	43*28*98 inch
ZLSP400A	55 HP	350-450 kg/h	1010/1050kg	1300*800*2600mm
		770-990 lbs/h	2227/2315lbs	51*31*102 inch

• PTO pellet machine is popular in USA, because the farmers have own farm. It is easy to deal with the agro-wastes on the farm.

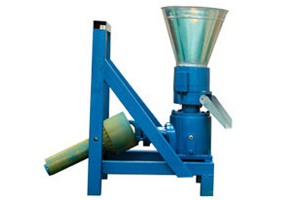

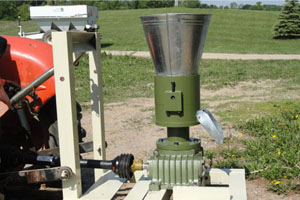

PTO pellet machine	PTO pellet machine used in farm

Technical Parameters of PTO Pellet Machine

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP120P	≥8 HP	40-80 kg/h	80/100 kg	900*540*900mm
		90-180 lbs/h	175/220 lbs	35*21*35inch
ZLSP150P	≥8 HP	50-100 kg/h	90/110 kg	900*540*1020mm
		110-220lbs/h	200/245 lbs	35*21*40inch
ZLSP200P	≥15HP	80-120 kg/h	130/150 kg	1000*540*1020mm
		180-265lbs/h	290/330 lbs	39*21*40inch
ZLSP230P	≥22HP	120-200kg/h	175/200 kg	1000*540*1020mm
		245-440lbs/h	385/440 lbs	39*21*40inch
ZLSP260P	≥30HP	160-250kg/h	235/260 kg	1050*540*900mm
		350-550lbs/h	518/580 lbs	41*21*35inch
ZLSP300P	≥55HP	250-400kg/h	305/330 kg	1100*540*1000mm
		550-880lbs/h	680/730 lbs	43*21*39inch

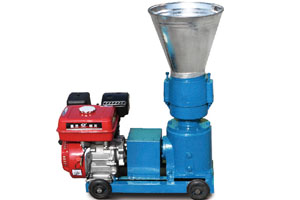

• Gasoline pellet machine is our newly machine the end of last year.

	Power	10HP
	Capacity	50-100kg/h
		110-220lbs/h
	Weight	180kg
		400lbs
	Packing Size	1000*500*750mm
Gasoline Pellet  Machine		39*20*30inch

Biomass pellets have wide application. As an alternative to traditional fuels, biomass pellets are featured by low cost and high efficiency. They can discharge as high calorific value as coal when burning. They usually are used as fuel for cooking, heating, industrial using, or generating electricity. DIY pellet mills are made on the consideration of individuals’ or family users’ need. With such a machine, you will no longer have to buy pellets from market, but you can sell the extra to local market to earn money.

If you want to DIY pellets for an economic profit, we recommend you to allocating the DIY pellet mills with pellet cooking stoves. With the efficient performance of pellet cooking stove, people will have a constant demand to pellets. In return, the excellent performance of pellets will also accelerate the sale of pellet cooking stove.
